DESIGNED FOR RELIABLE DELIVERY OF DEVICES TO TARGET
Guidion Hydro guide extension catheter has a radiopaque soft tip for true distal end visibility facilitating precise device positioning. The high density coiling of the distal shaft ensures optimal lumen integrity and smooth device delivery. A proximal oval push rod design keeps the profile low while securing optimal pushability.
CATEGORY
Vascular Intervention Coronary Guide Extension Catheter

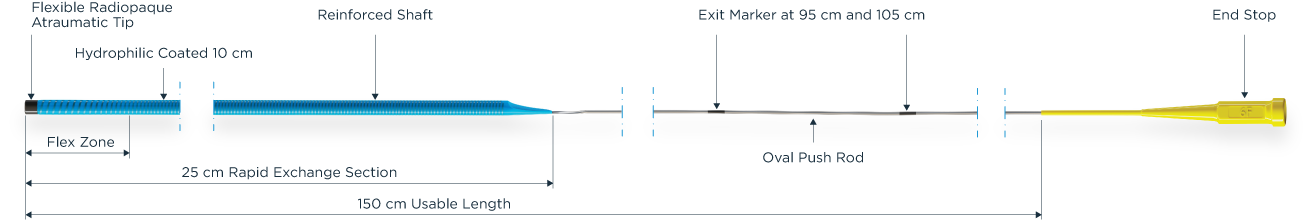

Schematic
Technical Data
| Guide extension catheter | |
|---|---|
| Distal shaft length | 25 cm |
| Shaft material | Polyether Block Amide |
| Tip | Flexible, radiopaque, 1.3 mm length |
| Outer coating | Hydrophilic distal 10 cm |
| Exit markers | 95 cm and 105 cm |
| Usable length | 150 cm |
Order Information
| IMDS article number | Required guide catheter ID | Distal shaft length |
|---|---|---|
| G50F25150 | 5F, ID ≥ 0.056" (1.42 mm) | 25 cm |
| G60F25150 | 6F, ID ≥ 0.070" (1.78 mm) | 25 cm |
| G70F25150 | 7F, ID ≥ 0.078" (1.98 mm) | 25 cm |
| G80F25150 | 8F, ID ≥ 0.088" (2.24 mm) | 25 cm |
